More Details on the Exterior

The garage doors may be the largest opening to your home, and you may not think about insulating them.  However, insulating them helps stop the transfer of cold or hot air into your garage.  This is especially important if your garage is attached to your home.  If you use your garage as a workshop, insulating your garage doors will add to your comfort level and narrow the temperature ranges that occur in relation to the extreme temperature range outside the garage.  It's also especially important if you have a room above or a suspended garage below, which we have both in this particular house.

 They were installed in a few hours.

 The insulated panels look great on the inside and they are stained a dark oak on the outside.  Greenify will install them with a cable instead of a chain to ensure a smooth transition from open to closed.  The insulated panels are also quieter than non-insulated ones.  Your existing garage doors can be retrofitted with insulation if you'd rather not replaced the entire door itself.

 Here they are finished.

 More tile work completed by KBC Kitchen Bath Creations 801-367-0331.

 Trim continues around the windows by Rich McArthur, 801-678-3567.

 The exterior siding began by Unique Custom Exteriors 801-837-6822.  Adam Prows was great to figure out how much siding and where to get the budget numbers where they needed to be.  Stacy coordinates the scheduling.

Hardie Siding complete, but missing trim and stain.

Still missing some facia and the rock.

 Painting to come next week.

 Grading complete and ready for the last concrete pour.  Doors to be painted next week.

 Grading done and ready for concrete.

 Racing to the finish line.

It's a Good Day When the Greenify Truck Shows Up

For any general contractor, showing up to a job to see cars parked outside is a great feeling because it means work is going on inside and progress is being made.  It's an even greater feeling to see the Greenify trailer parked outside.  That means there's attention to the details of how the house will function efficiently.  Today, Greenify was caulking around all the base of the walls where there is a 1/2" or so of space between the drywall and the floor.  This is an area where unconditioned air seeps in from any penetrations from the outside and can be a source of energy loss in your home.

 The shower pans waterproofing were constructed by KBC Kitchen Bath Creations, 801-996-8216 and filled with water to await passing inspection.

 After inspection passed, the forms were made and filled with concrete to make the shower pans.

 Then the tile was laid on the shower floors and walls.  Their attention to detail is great and they do a perfect tiling job.  Their manager, Luis Salazar 801-367-0331, is great to work with and follows up everyday on the progress making sure that things are done correctly.

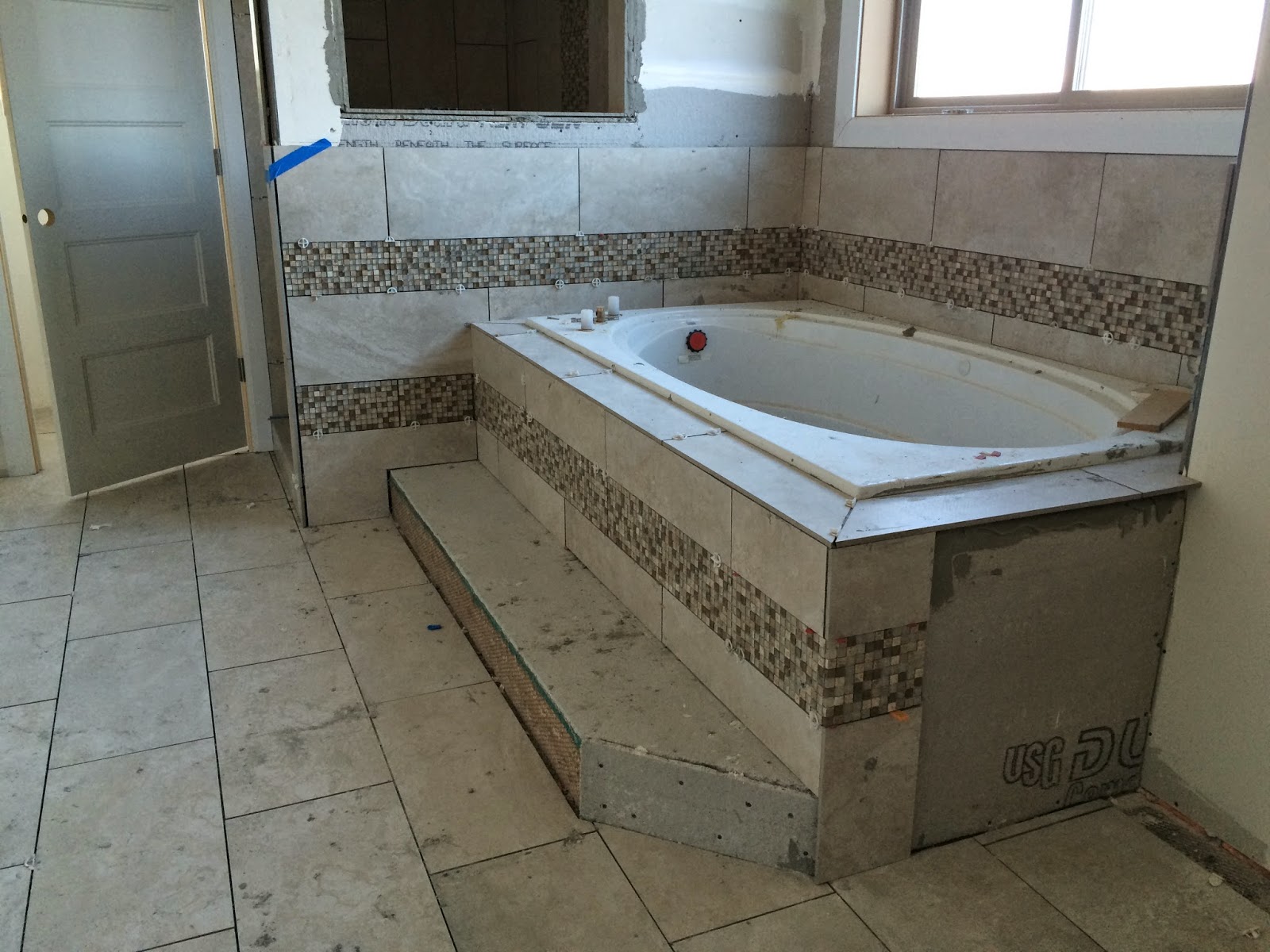

The tile is now complete and ready for grout.  Notice the mitered corners done by KBC.  These guys really do a great job.

More great work done by KBC in natural slate stone.

 The interior doors and trim work began by Rich McArthur, 801-678-3567, who is also a general contractor.  He is meticulous, hard working, and dependable.  Things are really starting to come together quickly.

 Greenify is all about going green and greenifying your wallet too.  This is a wrought iron staircase recycled from another builder's remodel of the old Kencraft Candy shop in Alpine.  No use throwing it out when we can have Iron Ornamental, 801-571-1301, come pick it up and retrofit it for the back deck.  Can't wait!

 Muddy Boys Drywall 801-224-6575, completed the smooth, barely any European texture on the walls and ceilings, and did a great job to see everything was completed to satisfaction.  The project was managed well and they came in at a great price.

 Even with the tricky ceilings upstairs, the outcome was professional and seamless.

 See the light coming through above and below that door?  Not good for energy efficiency.  Greenify came back to seal that door so that even in an unfinished area, it will keep the conditioned air in and the weather out.  If you see light coming in anywhere around your doors, give Greenify Energy a call, as usually what you CAN see is just an indicator of bigger energy inefficiencies you CAN'T see.  Greenify has solutions for every budget and can transform your drafty, inefficient home into a comfortable one that makes it easier on your wallet too.

Wouldn't It Be Nice If You HAD to Turn the Heat Down?

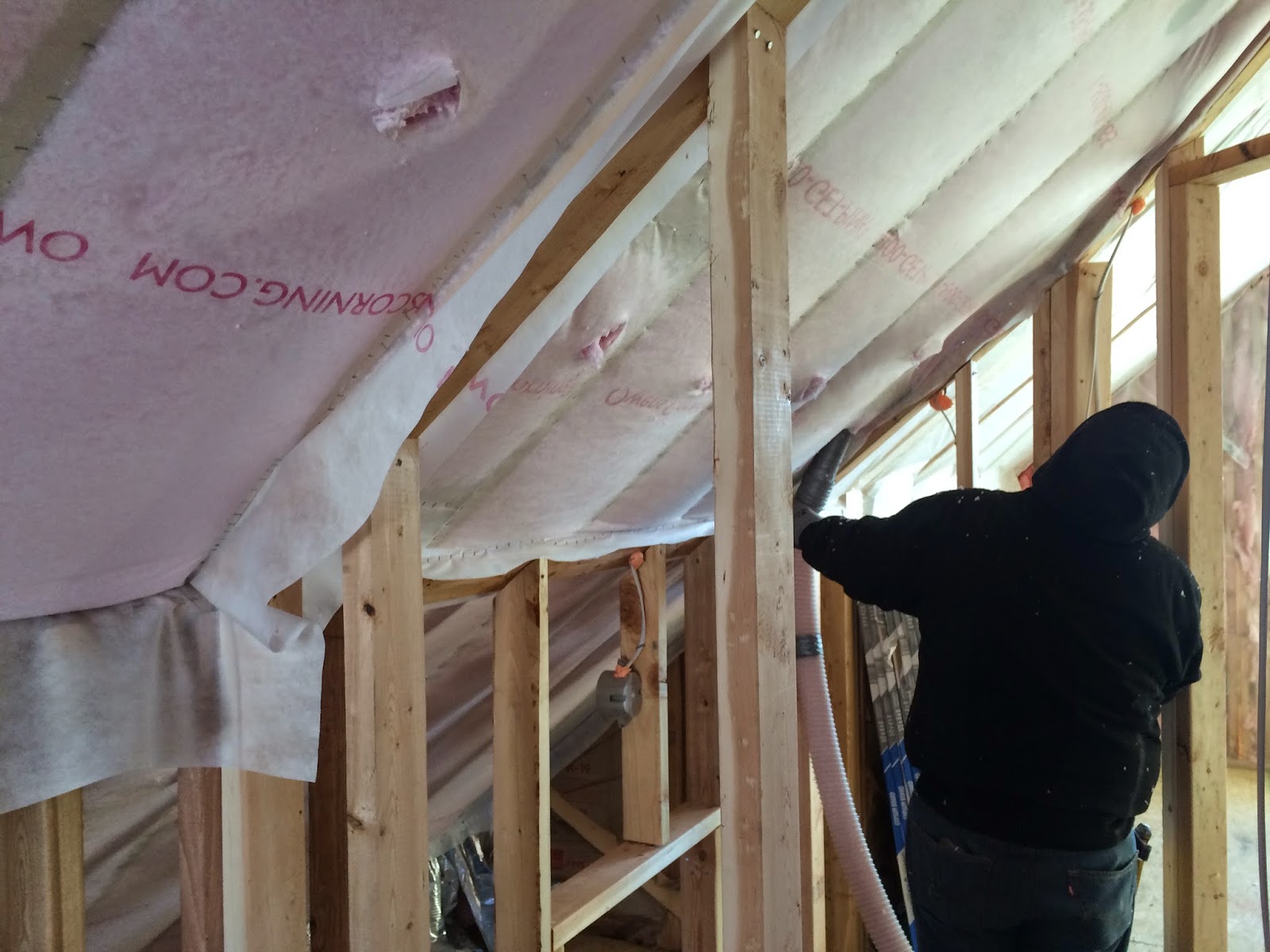

It's Show Time.  Time to wrap this house in an incredibly warm and fuzzy pink blanket.  It's Greenify's insulating method called "Mesh and Blow."  Because this floor plan had two bedrooms built into attic space, it took some creativity to reach the goal of R60 in the ceilings and R30 in the walls.  And remember, the radiant barrier is on the other side of the Mesh and Blow insulation.  Holes are periodically made in the mesh to allow the pink insulation to be blown inside and fill the mesh which is stapled directly to the framing.

 Here's some loose insulation that spilled out accidentally during insulation.  Easy to pick up and reuse in the walls elsewhere.

This is the finished product -- literally a thick R57 quilt encasing the roof.  It's not like R30 batts stapled to the sheathing, allowing cold or hot air to leak in between the studs.  With the vapor barrier over the top of the Mesh and Blow insulation, this ceiling is as close to sealed from the elements as can be possible.

Another insulation method is spray foam, which is great if it's installed correctly, however it adds up very quickly as it is billed by the square foot.  In order to get the R60 value in the ceiling, we would have had to spray the foam 10" thick, which would have broken our insulation budget.  We got a better, more cost-effective result with the Mesh and Blow.  However, it was worth it to have the rim joists (the part where the floor joists meet the foundation) spray foamed to seal the many gaps that let in outside air.  This is an area where most people don't consider any treatment beyond slapping an insulation batt in the rim joists. Greenify spray foamed the rim joists and then finished it off with an R30 batt.

This is how the rim joists looked after the spray foam and batts were installed.  Even before Tyvek and drywall, the house just felt warm and cozy.

Meanwhile, on the outside Tyvek and stucco paper were installed by Unique Custom Exteriors on the back of the house in preparation for the stucco brown coat.

 Another type of insulation that works great in attics and also as sound proofing, is a recycled newspaper product called cellulose.  It is also pumped into a mesh system as seen here.

We chose to use mesh and cellulose in the ceilings of parts of the basement where soundproofing would be a nicety -- like the ceiling and walls of the media room, office, and beneath the main level bedrooms.

 Once Greenify's insulation magic happened, the drywallers could come in and start making it look like a house.  We used Muddy Boys drywall company, whose bid was very competitive and they have several crews for each step of the drywall process.  The weather was starting to turn for the worse, and we had trouble getting the utility companies to come set the gas meter and electric panels.  We had to keep the mud from freezing by putting it in the pantry sealed off with plastic sheets and heated by a space heater.

 But once we had gas and electricity, we could move forward with tape and mudding which requires the temperature inside to be a steady 68 degrees Farenheit.  Because of Greenify's energy efficiency plan of radiant barrier, foaming, Mesh and Blow, mesh and cellulose, and spray foaming, when we have the thermostat set to 68 degrees, it is roasting.  I have to turn the thermostat down to 60 degrees in order to be comfortable.  How much money and energy would you save if you had to turn the heat down??  And we don't even have Tyvek and exterior finishes on the entire house yet.

On the outside, we finally had a warm day that allowed Unique Custom Exteriors to brown coat the stucco on the back of the house.  It needs 5-6 days to cure before the color coat can go on, so we are keeping our fingers crossed for another sunny warm day above 40 degrees so we can avoid the cost of tenting.  Wish it were as warm and toasty on the outside as it is on the inside.

Do You Have a Second Story That Bakes in the Summer?

So the framing, plumbing, HVAC, and electrical are complete.  The low-voltage stuff (pre-wire for surround sound, alarm systems, cameras, intercoms, etc.) and central vac are in the walls and ceilings.  Ready to slap on your insulation, right?  Wrong.  That is, if you want to make your house as energy efficient as possible.

Most people skimp on probably the most important part of building the house -- sealing it properly and insulating it against the elements in the heat of the summer and the bitter seeping cold of winter.  Maybe you suffer with a second story that just bakes in the summer, and no matter how cold you turn down the AC, there are rooms upstairs that are just never cool enough to sleep at night.  Hopefully, you're not like some of our clients who have had to sleep on sofas on lower levels of the house just to get through the hottest nights.

There are solutions, and this is where Greenify shines!  Take for instance, our second story on our model -- built into attic space.  Truly not the best energy efficient design.  However, with a little extra planning, Greenify came up with a solution to ensure these upstairs bedrooms are comfortable in any weather.  It begins with radiant barrier under roof sheathing and down the outside walls.  If you've never seen radiant barrier, it's that space-suit-like shiny stuff.  It was actually invented by NASA for astronaut space suits to insulate them against extreme temperatures in outer space and upon re-entering the atmosphere.  Used on houses, it reflects heat coming in from the sun back out to keep attic temperatures significantly lower during the summer.  During the winter, it prevents heat loss to the outside by reflecting the HVAC heat back into the house.  Ask any of our customers, and they will tell you the immediate and noticeable difference in the comfort level of their homes once radiant barrier is installed.

 Here's a close up of the radiant barrier foil between the trusses.  We don't recommend or install the paint kind of radiant barrier as it is just not as effective as the foil.  The foil reflects up to 97% of the radiant heat coming into an attic!  Every home, whether new construction or existing, can benefit from the energy savings of radiant barrier.

 Another overlooked, but crucial aspect of energy efficiency is properly sealing your home.  There are gaps in the framing around windows, in walls, in the rim-joists that often are covered up with typical R-19 insulation batts.  However, that doesn't keep the winter wind from whistling through or summer heat from radiating in.  Greenify foams all those perforations to prevent that energy loss.

 Ever wondered how those spiders got into your house?  Probably through your electrical boxes or other perforations from the electricians, plumbers, or HVAC guys.  The holes have to be cut, but if Greenify foams around them before you cover them up with insulation, you can eliminate a lot of entry places for those pesky invaders.

 This plumbers hole was big enough for a whole family of mice to enter into the home.  Not anymore after Greenify came to foam.

 Foaming perforations is an investment that has to be made before the drywall goes in.  It's something that can't be changed very easily later.

 Most builders will only put in the minimum amount of insulation required by code, which simply is not enough.  In our climate, the R-value goal should be close to R-60 in the ceilings and R-30 in the walls.  In many of the clients Greenify serves, they don't even have the minimum requirement like they thought they did.  You should have enough insulation in the eaves, as pictured here, to prevent snow-melt and eventual ice-damming and roof damage.

 This is when you can be relieved you framed your house with a minimum of 2x6 (instead of 2x4) when it's stuffed full of insulation batt equalling R-30.  Stay tuned for the next post which will show you a new kind of insulation called "Mesh and Blow" which literally looks like your house is wrapped with a pink overstuffed quilt.  We'll also show you cellulose blown insulation which is made from recycled newspaper and is dense enough for soundproofing as well as fantastic insulation.

The Big 4-Way Complete

With the big 4-Way (Framing, Plumbing, Electrical, HVAC) Inspection passed, it's time to call in Greenify to work their energy efficiency magic.  Stay tuned for the next post which will show Greenify doing what we do best.  The pink stuff has started to arrive...

 It's also time for the outside finishers to begin their set up.  Scaffolding begins to rise...

 Adam Prows at Unique Custom Exteriors (801)280-1061, helped us determine the ratios of stucco, and Hardie Plank and Board/Batten to hit the budget numbers.  Paint colors, soffit/facia colors, and gutters were all chosen.  The scaffolding took about a day to set up in preparation for the stucco to go on first.

 The front door, a fiberglass mahogany Thermatru door arrived and was installed by Jason with Greenify.

 After the electrical wiring complete, Kevin Davidson of Monster Media and Automation (801)592-9551, wired all the low-voltage requirements for built-in speakers, HDMI cable, Ethernet and TV cable.  He also put in the central vacuum system.

 It's important to keep your electrical wiring separate from the low-voltage wiring to ensure that your speakers don't have annoying feedback when watching a movie or playing music.

 We're glad the weather is holding out -- beautiful but crisp -- so we can get this house completely dried in before Mother Nature brings winter on.
